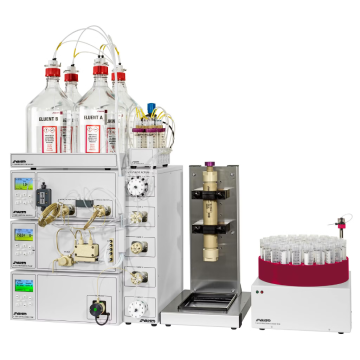

Sykam S700 PREP HPLC System
Sykam S700 PREP HPLC System 2
Sykam S711 PREP HPLC System 3
Download CatalogSykam PREP HPLC PEEK
Sykam’s S721 PREPARATIVE Isocratic HPLC System - Stainless Steel Model
Descriptions
The Sykam S 721 Preparative LC System is an isocratic chromatography system with a metal-free PEEK flow path. This makes the S 721 system particularly suitable for protein chromatography and other applications requiring a metal-free flow path. The S 721 system is based on the S 1535 pump, available in 150 ml/min or 250 ml/min versions, and a pressure range of up to 400 bar. The system is equipped with the S 5400 sampling module with 10 ml and 2 ml standard sample loops. Sample loops with other volumes are available on request. The system is completed with the S 3255 variable wavelength UV/Vis detector, with a wavelength range of 190 nm to 800 nm, and a preparative flow cell with an optical path length of 0.5 mm.
The S 721 system can be operated as a manually controlled standalone system with analog and digital inputs and outputs for data collection and fraction collector control. For computer-controlled systems, we propose our PrepCon 5 control and data handling software presented on this website.
Sykam S721 PREP HPLC System - PEEK
Technical Specifications
| Details | Features |
|---|---|
| Flowrate range | up to 150 ml/min, up to 250 ml/min |
| Max. pressure | 350 bar |
| Gradient | Isocratic |
| Detector | UV/Vis (190 – 800 nm), pathlength 0.5 mm |
| Sample injection | Automatic, manual, 10 ml sample loop, 2 ml sample loop |
Sykam PREP HPLC SS
Sykam’s S711 PREPARATIVE Isocratic HPLC System-Stainless Steel Model
Descriptions
The Sykam S 711 Preparative LC/HPLC System is the basic configuration of the S 700 series of instruments. It is an isocratic system with the S 1535 pump as 150 ml/min or 250 ml/min version and a presssure range of up to 400 bar. The system is equipped with the S 5400 sampling module with 10 ml and 2 ml standard sample loops. Sample loops with other volumes are available on request. The system is completed with the S 3255 variable wavelength UV/Vis detector with a wavelength range of 190 nm to 800 nm and a preparative flow cell with an optical path length of 0.5 mm.
The S 711 System can be operated as manually controlled standalone system with analog and digital inputs and outputs for data collection and fraction collector control. For computer-controlled systems we propose our PrepCon 5 control and data handling software presented on this website.
Sykam S731 PREP HPLC System-SS
Technical Specifications
| Details | Features |
|---|---|
| Flowrate range | up to150 ml/min, up to 250 ml/min |
| Max. pressure | 400 bar |
| Gradient | Isocratic |
| Detector | UV/Vis (190 – 800 nm), pathlength 0.5 mm |
| Sample injection | Automatic, manual, 10 ml sample loop, 2 ml sample loop |
Sykam’s S731 PREPARATIVE Isocratic HPLC System-Stainless Steel Model
Descriptions
The Sykam S 731 Preparative LC/HPLC System is the basic configuration of the S 700 series of instruments. It is an isocratic system with the S 1535 pump as 150 ml/min or 250 ml/min version and a presssure range of up to 400 bar. The system is equipped with the S 5400 sampling module with 10 ml and 2 ml standard sample loops. Sample loops with other volumes are available on request. The system is completed with the S 3255 variable wavelength UV/Vis detector with a wavelength range of 190 nm to 800 nm and a preparative flow cell with an optical path length of 0.5 mm.
The S 711 System can be operated as manually controlled standalone system with analog and digital inputs and outputs for data collection and fraction collector control. For computer-controlled systems we propose our PrepCon 5 control and data handling software presented on this website.
Sykam S731 PREP HPLC System-SS
Technical Specifications
| Details | Features |
|---|---|
| Flowrate range | up to150 ml/min, up to 250 ml/min |
| Max. pressure | 400 bar |
| Gradient | Isocratic |
| Detector | UV/Vis (190 – 800 nm), pathlength 0.5 mm |
| Sample injection | Automatic, manual, 10 ml sample loop, 2 ml sample loop |
