Eldex Pressure Pumps
Description
Eldex Optos Series high pressure metering pumps offer adjustable precision fluid delivery with local and remote controls and come in three different models (1, 2, 3) based on stroke length with options for three different interchangeable liquid ends (L, S, H). Each resulting combination covers a specific flow and pressure range. Ideally, choose a model you will use in the upper range of its capacity. We offer models in Hastelloy-C, 316SS, and PEEK material of the composition. Pistons are sapphire. Inlet and outlet valves are provided in sapphire/ruby and PEEK/ceramic for high temperature/pressure applications. We offer an integrated damper/pressure transducer for additional pulse dampening and pressure monitoring capability.

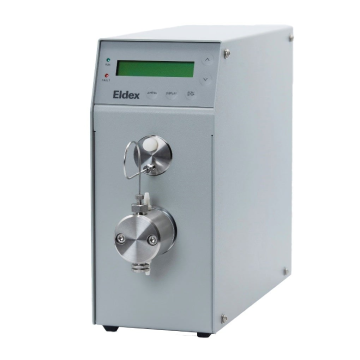

Eldex Optos High Pressure Pump with Pulse Damper

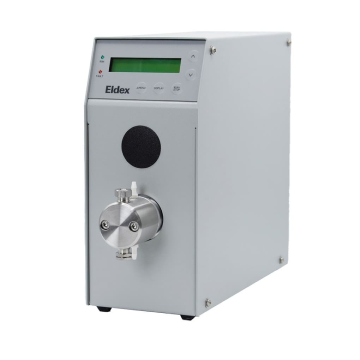

Eldex Optos High Pressure Pump without Pulse Damper

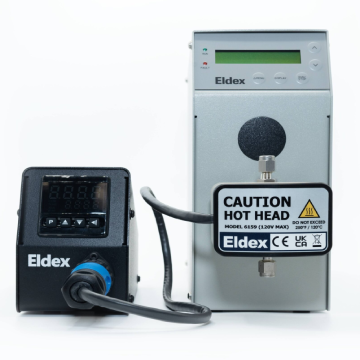

Eldex Optos Series-Hot Head Module for High Pressure Pumps
Benefits
- Precise metering and dispense for scientific, engineering, and industrial applications
- High pressure capabilities
- Adjustable flow rate
- Long-duty cycle
Features
- Highly engineered reciprocating piston design
- Precision metering from 0.002-80mL/min
- Microliter dispense mode, piston synchronization
- High pressure capabilities to 6000psi
- Serial connectivity, RS-232 (RJ-11) and analog control
- Corrosion resistant materials
- Integrated piston wash and optional pulse dampener
- Pressure monitoring capability
- 50+ year history of innovation
