Sykam PREP HPLC Accessories

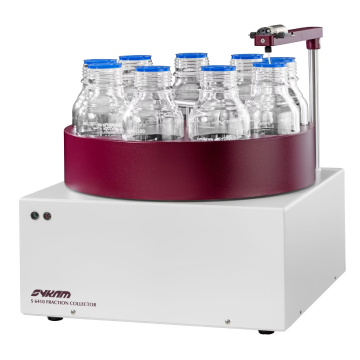

Sykam S6410 Fraction Collector
Discription
The Sykam S 6410 Fraction Collector is an easy to use basic fraction collector for preparative LC/HPLC. A choice of 4 interchangeable tube racks and simple digital I/O and RS-232 control allow easy integration with virtually any preparative chromatography system.
Download Catalog
Technical Specifications
| Features | Details |
|---|---|
| Collector Rack 1 | 81 x 14 ml tubes (diameter 16mm) |
| Collector Rack 2 | 45 x 50 ml tubes (diameter 30 mm) |
| Collector Rack 3 | 9 x 250 ml bottles (diameter 71 mm) |
| Other rack dimensions | Available on request |
| RS232 | Collect/drain, init position, next position, previous position, goto position, error reporting |
| Digital I/O | Collect/drain, init position, next position, previous position, error output |
| Wetted materials | PEEK, PVDF |
| Max. flowrate | 100 ml/min |

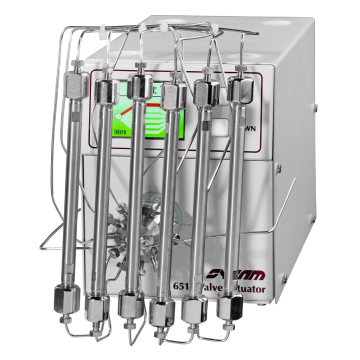

Sykam S6510 Auto Valve Actuator
Description
The Sykam S 6510 Automatic Valve Actuator can be configured with any multiport switching valve of the Sykam S 6000 or S 6800 valve series. The S 6510 is also part of some basic S 700 preparative HPLC-system configurations and as possible alternative for a fraction collector when combined with a multiport valve from the S 6800 series. The S 6510 can also be used as a standalone unit. The USB, RS232 control and TTL control enables flexible integration with most chromatography systems from other brands as well.
Download Catalog

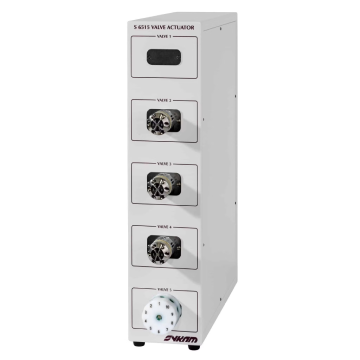

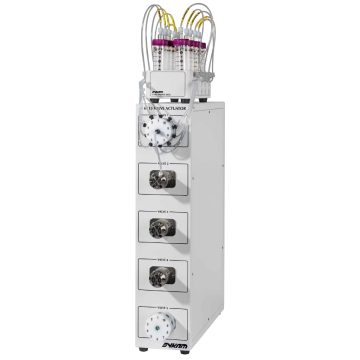

Sykam S6515 Mutil-Valve Actuator
Description
The Sykam S 6515 Automatic Multiple Valve Actuator can be configured with up to 5 independent multiport switching valves with any valve of the Sykam S 6000 or S 6800 valve series. The S 6515 is part of the S 700 preparative HPLC-systems for a multitude of configurations enabling automation of switching flow paths for for instance column switching, reversing flow directions, eluent recycling, sample loading and fraction collection.
The S 6515 Valve Actuator can also be used as a standalone unit. The RS232 control and TTL control enables flexible integration with most chromatography systems from other brands as well.
Technical Specifications
| Features | Details |
|---|---|
| Number of valves | Up to 5 valves |
| Valve type | Any valve of the Sykam S 6000 and S 6800 series |
| Wetted materials | Depending on valve type |
| Max. pressure | Depending on valve type |
| Control | Manual, RS232, digital I/O |
| Power Supply | 100 – 240 V, 50 – 60 Hz |
